SLR All Purpose Bale Feeder


SLR All Purpose Bale Feeder


Do you have a mixture of square and round bales? Hay and silage? No problem, our SLR Feeder can handle them all with ease.



Features

  • A unique 2 stage sequence-controlled bale loading system that lifts the bale, holds it in position to assist with string/ wrap removal, and then places the bale in the correct position on the tilting tray
  • Can handle any type of hay, straw or silage round bales, and square bales up to 2.4 metres long
  • Built to Giltrap’s high standard for reliability and long-life performance
  • Aggressive feed elevator with anti-wrap guard which prevents feed material from wrapping around the rotating drive shafts
  • A position indicator linked to the loading mechanism to assist the operator with lifting the second bale
  • String loop to tie the bale strings to, so they are removed as the bale is fed out
  • Heavy duty powder coated full sheet metal floor. Provides a smooth slippery surface, which won't break down in strong UV sunlight

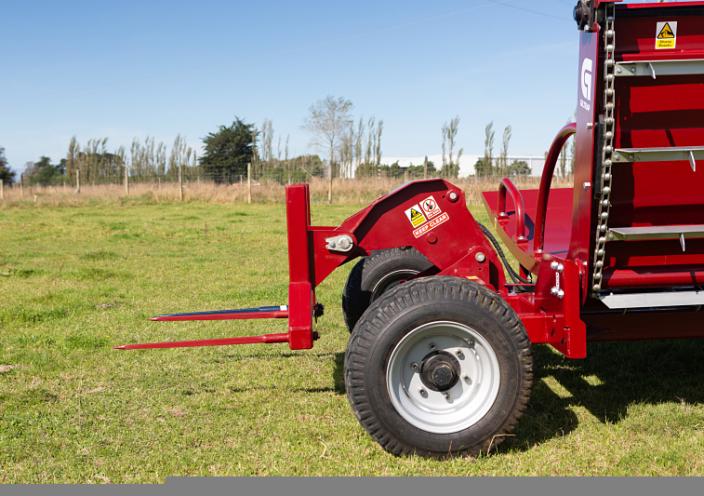

  • High tensile bale forks for ease of loading
  • Wide rear axle width (2.2 metres) for stability
  • Minimal moving parts with all pivot points bushed and greased

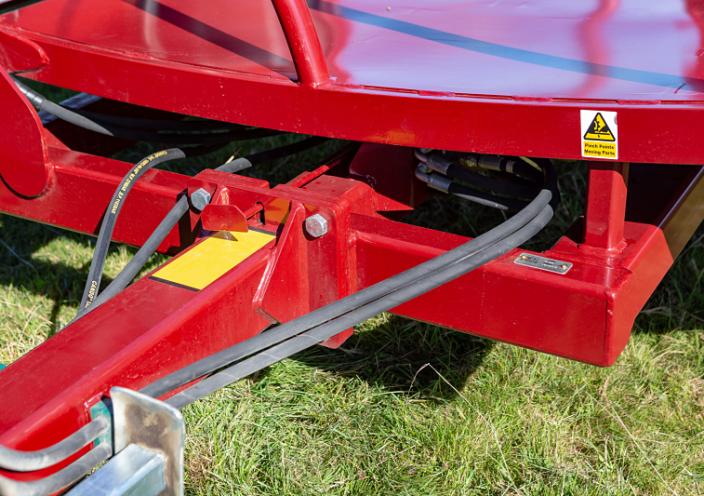

  • Safety chains on the drawbar

Specifications

  • Model: SLR
  • Overall length: 5.475m
  • Overall height: 2.25m
  • Overall width: 2.91m
  • Weight: 1275kg
  • Max. round bale size: 6ft (dia)
  • Max. square bale size: 4.6ft x 6ft (or 8ft) long

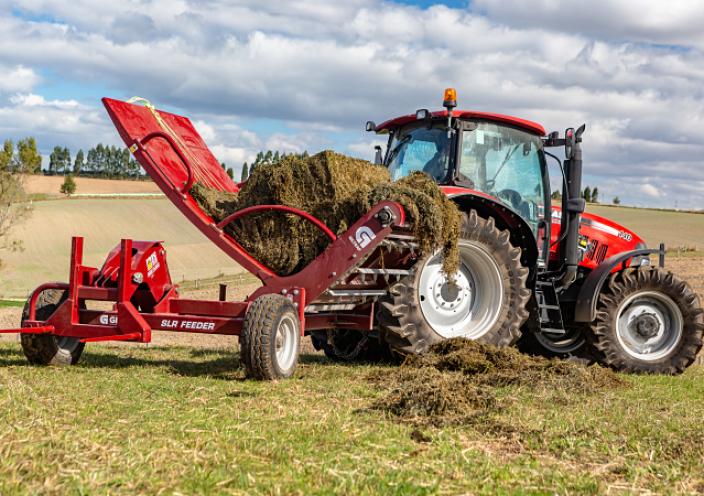

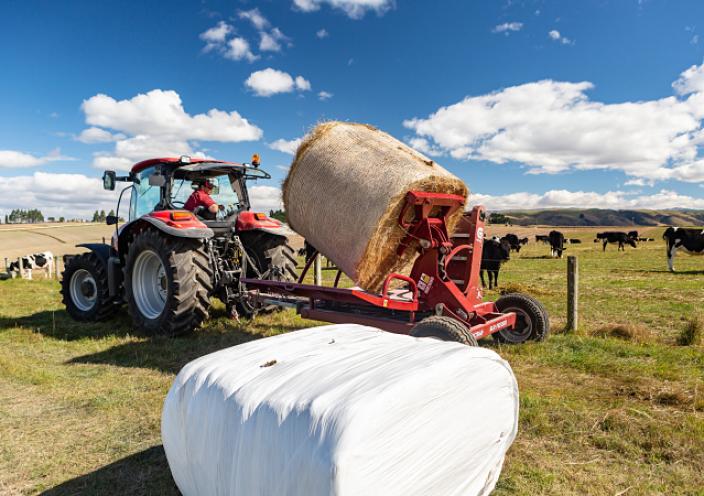

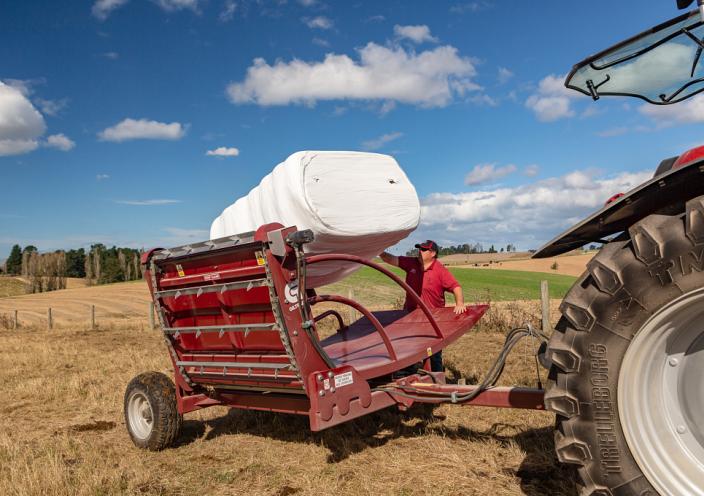

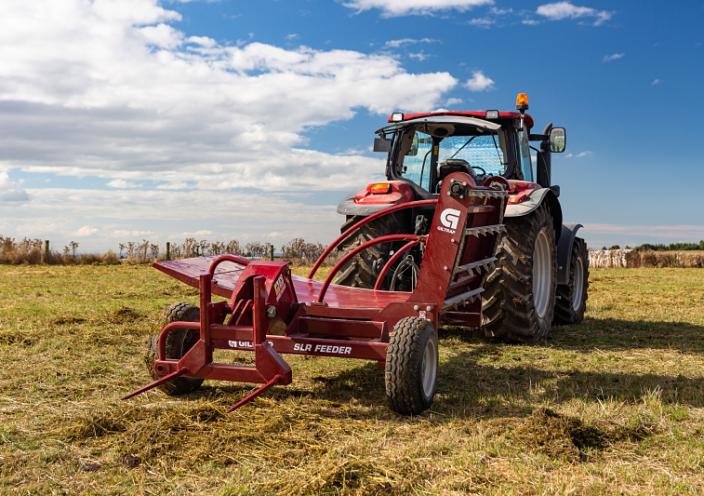

SLR Feeder in action
