MultiPlus 16


MultiPlus 16


Feeding square bales, round bales, pit silage or beet?

No matter what you've got to feed, the Giltrap MultiPlus Feeder will get the job done efficiently with minimal waste.

Features

  • Can feed out both sides & into troughs

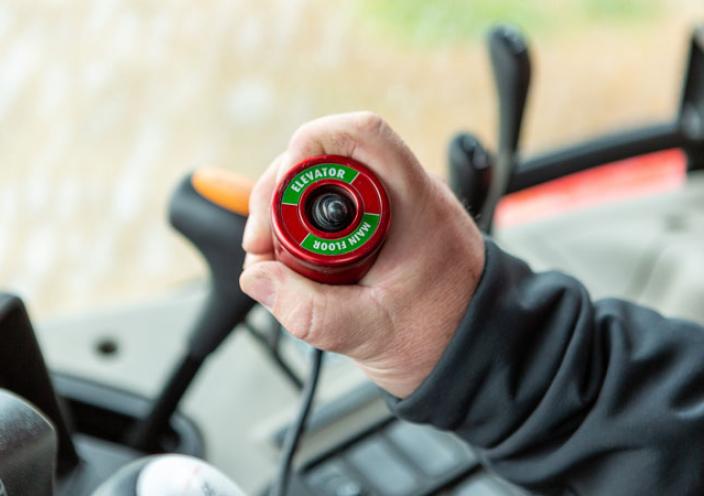

  • Rate control on the cross floor chain with elevator load sensing valve for an evenly controlled feed rate
  • High sides are standard for stacking two layers of square bales
  • Hydraulic tilting elevator on right hand side with concertina anti-spillage plate
  • Chain and slat transfer floor allows the load to be reversed
  • LED lights
  • Heavy duty tandem axles with remote greasing points

Specifications

  • 4' round bale capacity (mm): 5 x 1800 dia.
  • 4'x3' square bale capacity: 6 up to 7' long (single layer)
  • Cubic capacity (cu.m): 16.2
  • Est. load capacity (kg): 10400
  • Bin length (mm): 5365
  • Body length (mm): 6960
  • Overall length (mm): 8735
  • Body width (internal) (mm): 2100
  • Overall width (mm): 2890
  • Tandem axle (mm): 80 8 stud unbraked
  • Wheels: 400/55-22.5
  • Suspension: Oscillating beam
  • Floor height (mm): 1300
  • Overall height (mm): 2400
  • Main bin floor: 4 chains/slat moving floor
MultiPlus feeding out silage and fodder beet
