7500


7500

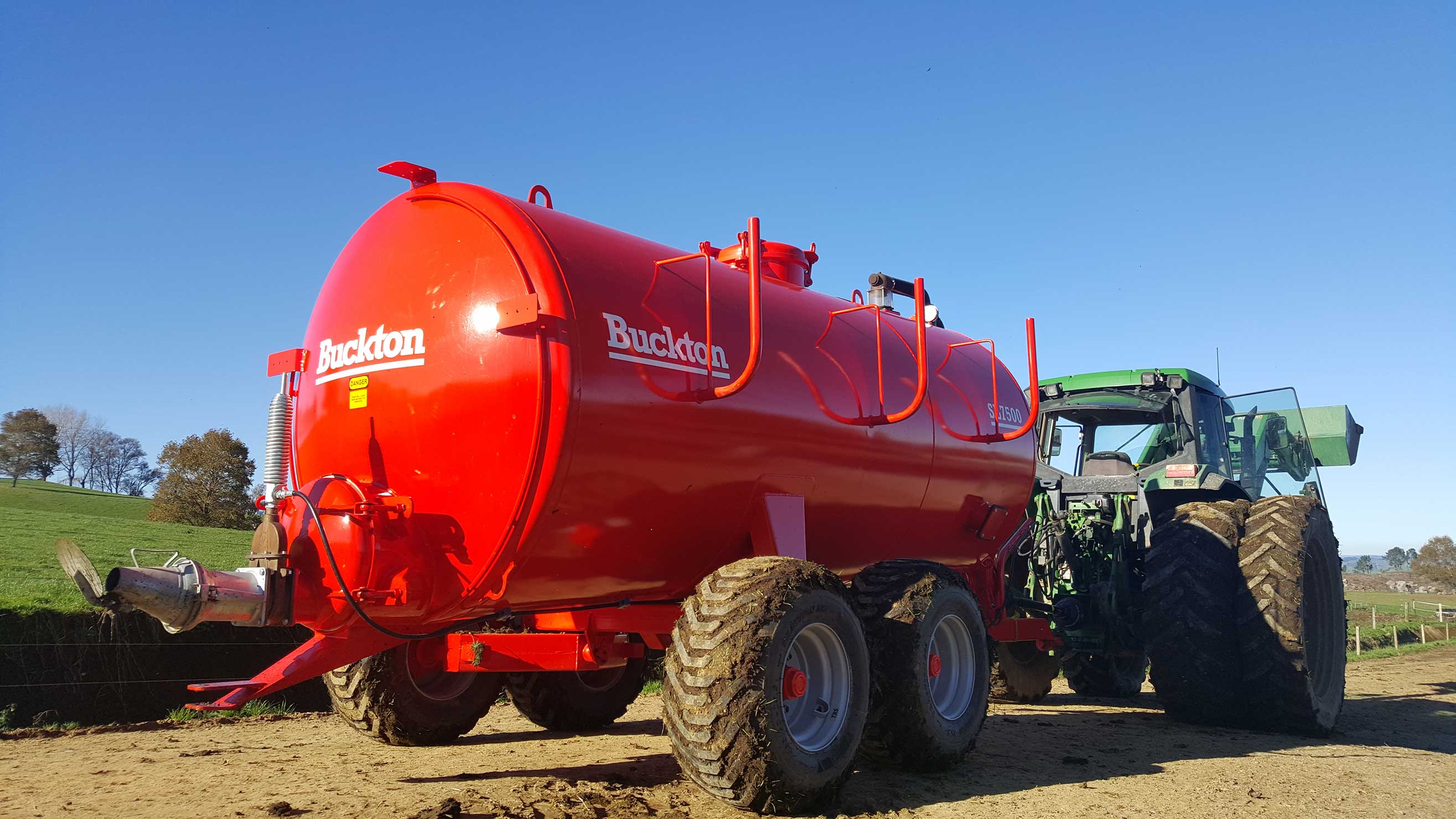

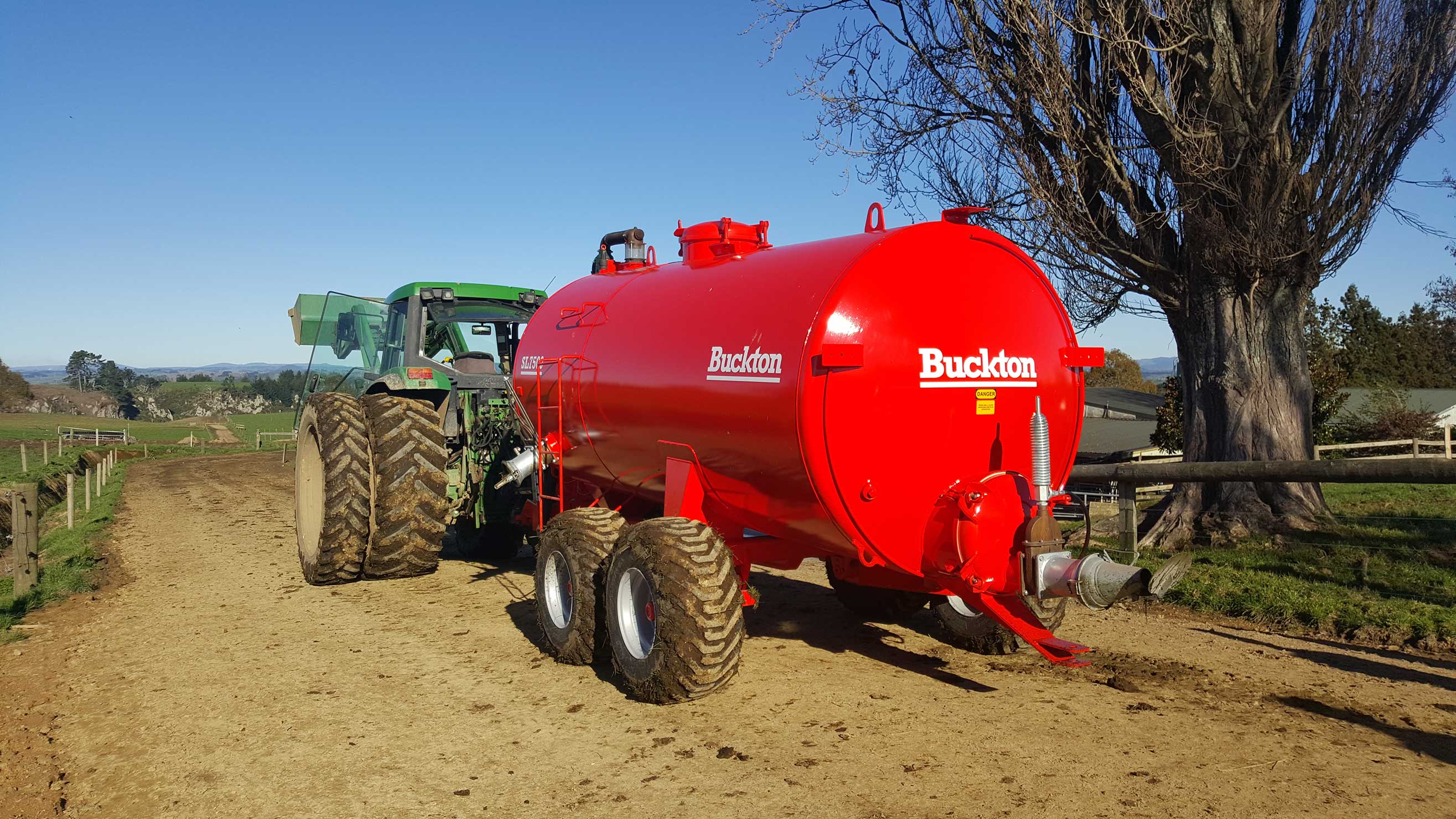

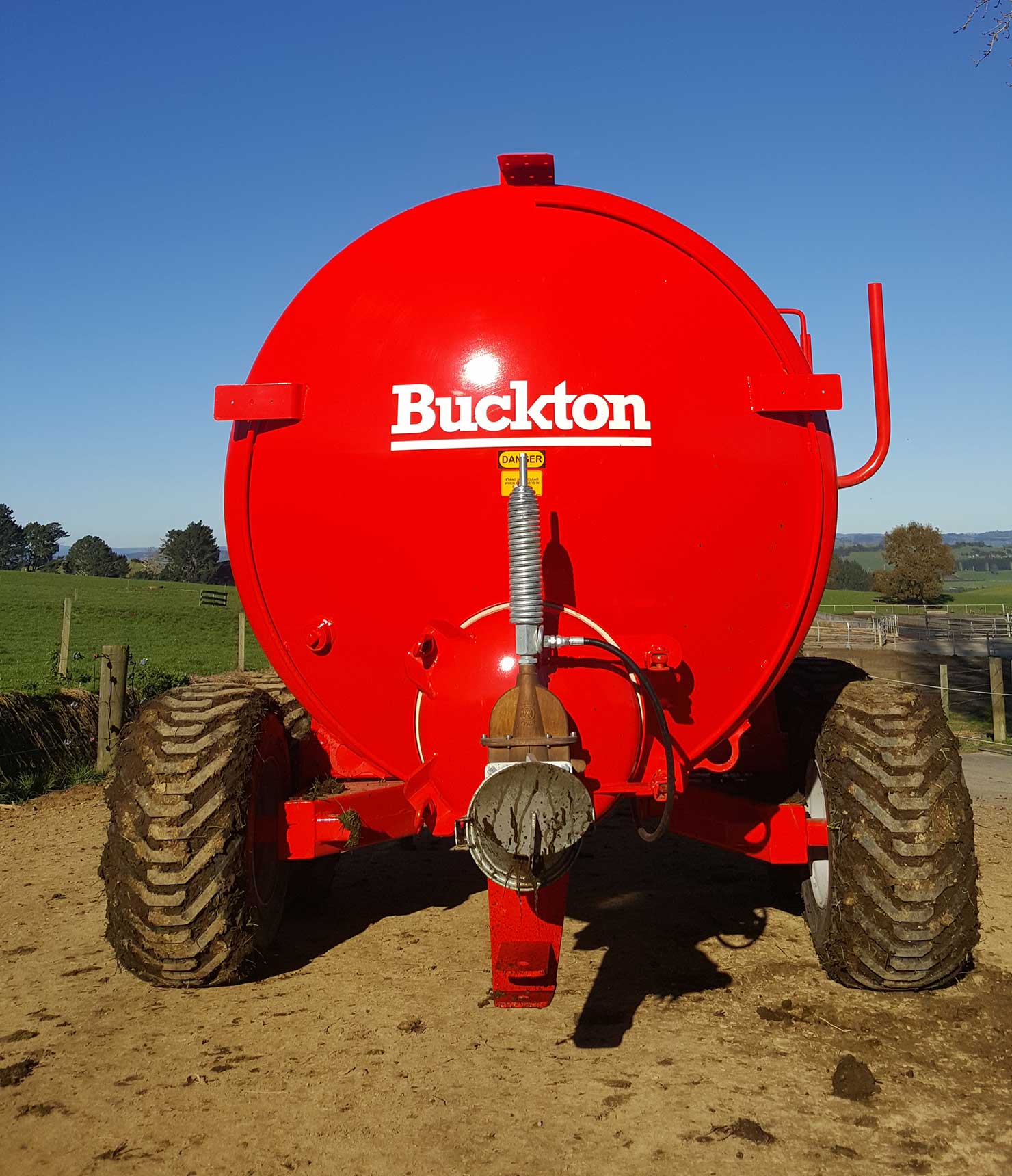

Top quality European components ensure constant, reliable handling of effluent, day in and day out. The tank is manufactured from 5mm plate steel, with 6mm domed ends and a strong integrated chassis giving the tank support throughout its entire length.

Features

  • Tandem axle
  • Replaceable bushes on walking beam axle pivots with remote greasing
  • Strong integrated chassis and drawbar
  • Internal baffle plate to prevent surging
  • Three separate filling points
  • Top and rear access points for easy cleaning
  • Brass and galvanised fittings for corrosion protection
  • Double moisture trap system
  • Epoxy paint inside the tank to reduce corrosion
  • 6mm steel plate domed ends double butt welded into the tank cylinder

Specifications

  • Tank diameter: 1.60m
  • Tank length: 4.30m
  • Tank capacity: 7700 litres
  • Baffles: 1
  • Tare weight: 2600kg
  • Overall length: 6.70m
  • Overall height: 2.45m
  • Overall width: 2.50m
  • Pump capacity: 8000 l/min
  • Pump lubrication: Automatic
  • Hose size: 150mm (6")
  • Hose length: 4m (x2) plus 3m probe
  • Filling points: 3
  • Manhole access points: 2
  • Axle type: Tandem
  • Axle size: 70mm (6 stud)
  • Wheels: 400/60-15.5
